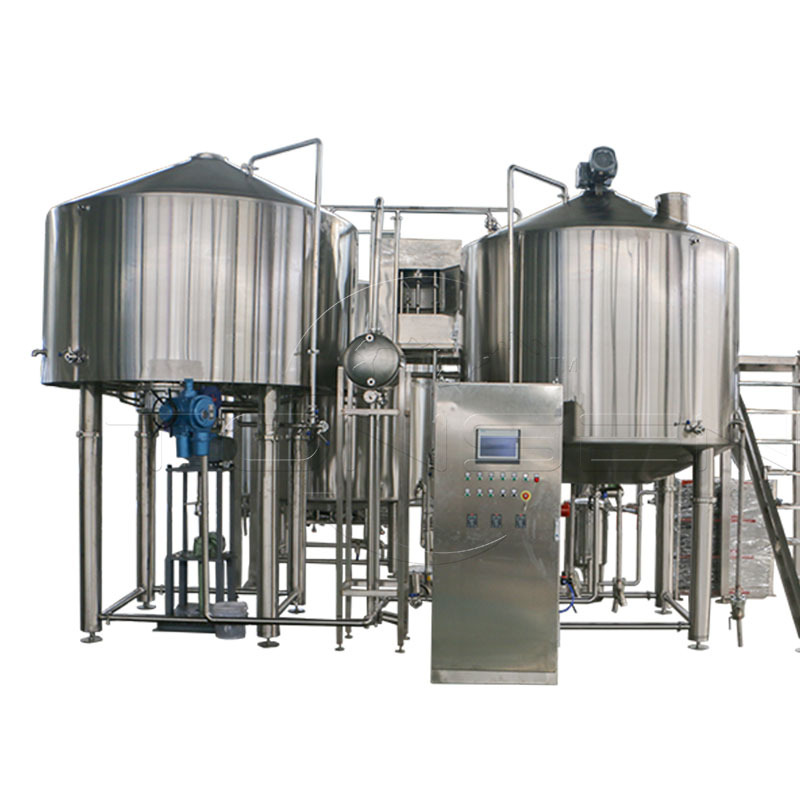

5000L Hotels Microbrewery Beer Brewing System Turnkey Brewery Brewing Equipment

1.0 Sets
MOQ
5000L Hotels Microbrewery Beer Brewing System Turnkey Brewery Brewing Equipment
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Processing: Fermenting Equipment
Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Advertising Company
Showroom Location: Canada, United States, Italy, France, Germany, Peru, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, South Africa, Kazakhstan, Ukraine, Uzbekistan, Tajikistan, Australia
Condition: New
Processing Types: Alcohol
Voltage: 3P 380V/ 1P 220V (Other optional)
Power: 15-70Kw Depends
Dimension(L*W*H): Capacity Request
Weight: 200 KG
Warranty: 3 years
Machinery Capacity: 1000L, 1200L, 1500L, 1800L, 2000L, 3000L
Machinery Test Report: Not Available
Warranty of core components: 3 years
Core Components: Pump, Pressure vessel, PLC
Key Selling Points: High Productivity
Marketing Type: New Product 2020
Video outgoing-inspection: Provided
Name: 5000L Turnkey Beer Brewing System Brewery Brewing Equipment
Material: SUS304/SUS316/Red copper
Heating method: Steam/Electric/Direct fire
Control system: Manual/Semi-automatic
Cooling way: Dimple Plate Cooling Jacket
Plate type: Mirror polishing/2B/wire Drawing
Insulation: Polyurethane/rockwool
After-sales Service Provided: Field installation, commissioning and training
Πιστοποίηση: CE, ISO
Βασικές πληροφορίες
Πιστοποίηση: CE, ISO
Πληρωμής & Αποστολής Όροι
Packaging Details: PACKING & SHIPPING 1)All tanks will be packed with soft protection material and mounted on steel frame 2)All accessories and spare parts will be packed with soft protection material and then put into iron box 3)After loaded into containers, all equipme
Supply Ability: 5000 Set/Sets per Year
Περιγραφή προϊόντων
5000l Turnkey Microbrewery Beer Brewing System Brewery Brewing Equipment
Product Description

1----Milling system


Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.

Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.

Optional: Flexible Auger.

2----Brew House System

-Capacity 100L-5000L, 1bbl-40bbl.
- Steam heated, electrical heated or natural gas
-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.
-Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.
-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.
-Insulated HLT and CLT with the pipelines and pumps
-External grant, hops back, heat exchanger.Wort oxygenation system, working platform.

-All the necessary pipelines and pumps

Capacity/batch
100L
200L
300L
500L
1000L
Model
TS-100L
TS-200L
TS-300L
TS-500L
TS-1000L
Area
15M2
25M2
35M2
45M2
80M2
Power
8kw
12kw
20kw
35kw
35/15kw
Frementation cycle
8~20days
8~20days
8~20days
8~20days
8~20days
Beer Fermenter

3----Fermenter&BBT System

-Capacity: 100L-30000L, 1bbl-100bbl, +25% Head space
-Interior shell thickness 3-6mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
-Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads
SPECIFICATIONS FOR  BEER FERMENTATION TANK

Tank Specification
Intelligent meter
control the tank temperature
1pc
Thickness
Inside 3mm, cladding 2mm
Manway Location
Top or Side
φ300, φ400, φ500


Tank Specification

Hops Port
Top
φ102, φ133
Racking Arm
Cone Bottom or Side
φ51
Cone Degree
Cone Bottom
72°, 60°


Tank Specification

Capacity
100L, 200L, 1000L, 2000L, 3000L, 5000L Or Customized
L, HL
Heat Exchange Area
Depend on Tank Effective Volume
M2
Tank Pressure
Work Pressure: 1-2bar
Test Pressure:2-3bar
Bar

4.----Cooling System

Description: Air type chiller + Ice water tank or Glycol tank

Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank

Brand: Copeland, SANYO


5----Control System

-PID or PLC system

-SIEMENS program S7-200, Siemens touch screen.

-Penumatic valves for optional

 5----Canning line, Kegging line

-Double station Kegging line.

-Small capacity Canning line.

Packing & Delivery

we can promise to ship the goods in time.I stress this point because at present, the Chinese government has a very strict requirement for the factory, if the factory doesnt have a complete certificates for the production, they will face the problem to be closed. And this will affect the delivery time. And for Tonsen, we have get all the certificates so we never meet this problem.


1) All tanks will be packed with soft protection material and mounted on steel frame

2) All accessories and spare parts will be packed with soft protection material and then put into iron box

3) After loaded into containers, all equipment will be fixed to the containers.
Service & Feedback

Technical Drawing

We will offer technical drawings of each tank based on the equipment layout.

Layout design

Send us your building floor plan, or the sketch, or tell us the size(length, width, height), we will offer you an equipment footprint according to your requirement.

3D Drawing

We will 3D effective sketch to make sure you have a more intuitive experience.
After-sales Service
WARRANTY
1.Main product brewery system beer brewing equipment for 3 years and auxiliary parts for 1 year.
2.Lifetime repair guarantee.
3.All spare parts and wearing parts are attached with the machinery for free.
SERVICE
1.Free consultation service before,during,and after sales.
2.Project planning and design the layout service.
3.Free debugging instruction of equipment until everything is functional.
4.Management of equipments' long distance shipping from seller's factory to named pord or station by buyer.
5.Training of equipment maintenance and operation personally.
6.New production techniques.
Our Company

Jinan Tonsen Equipment Co., Ltd. is an international comprehensive enterprise specializing in R&D,production,technical support and services for beer equipment and wine equipment .

We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.

Tonsen brewing equipment has been exported to more than 30 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark,Norway,Agentina,Russia etc.
